Hybrid Power Shelter™

Get endless backup power with no assembly required.

Talk to an Expert

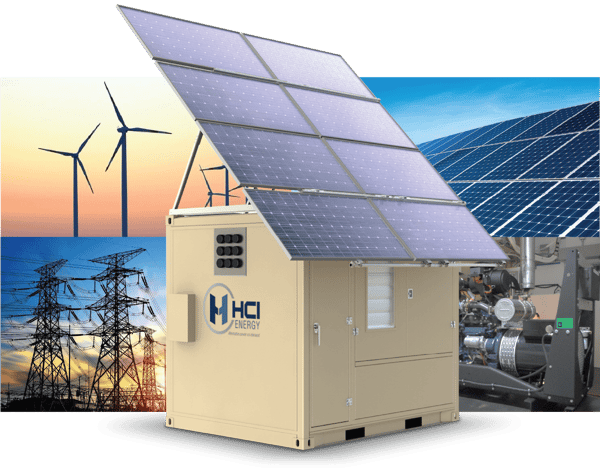

HCI Energy Hybrid Power Shelter Home Learn More Image

5 kW to 20 kW

Serviceable Load

>200 Ah

Energy Storage

Customizable

Dimensioning

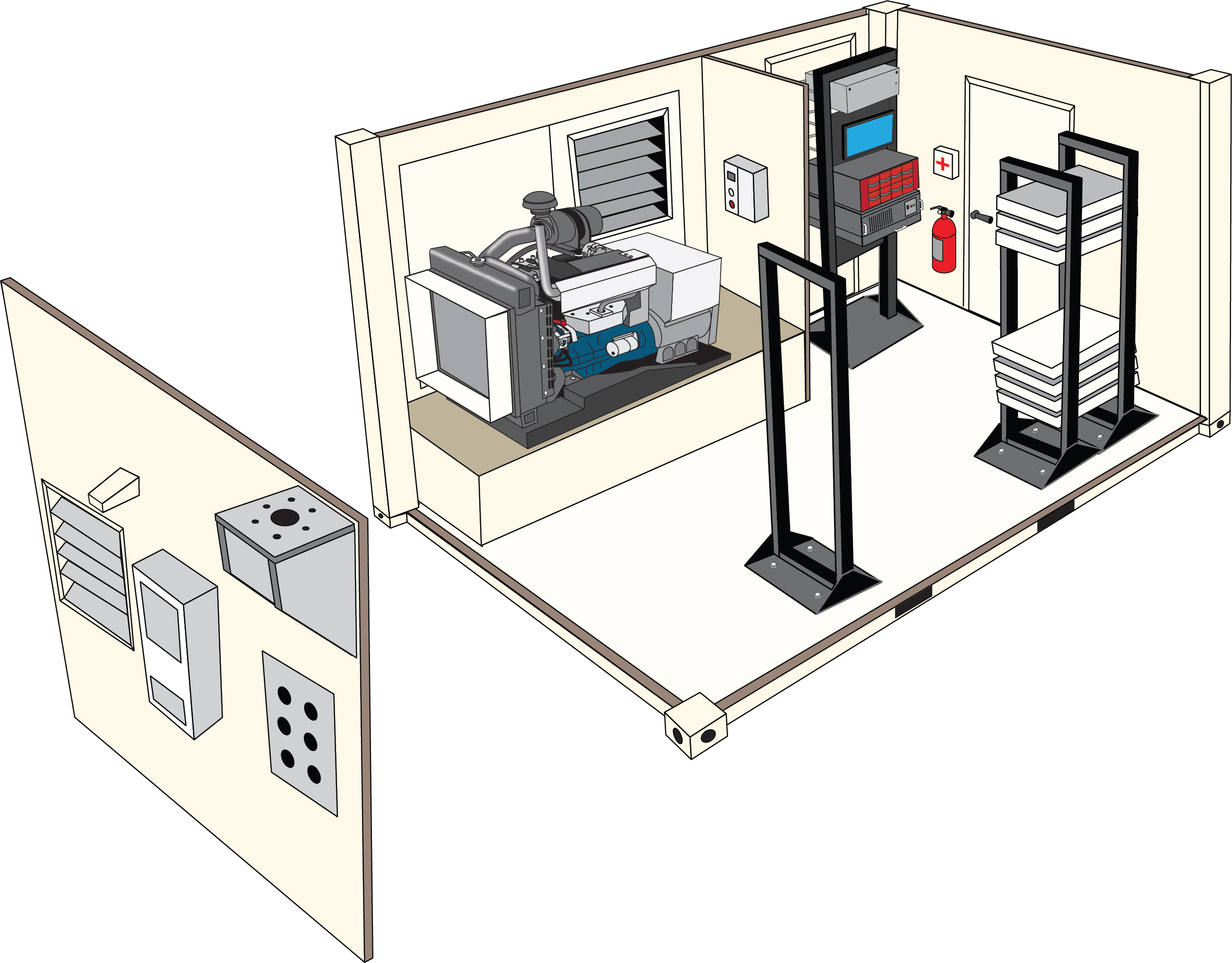

hcie energy 81030 standard unit open top

Specifications

With HCI’s Zero-Glitch Power Module (ZPM®) at its core, the Hybrid Power Shelter™ delivers ultra-reliable power when you need it most! Whether you want to be on the grid or off, the Hybrid Power Shelter uses multiple energy sources to keep its lithium-ion energy storage at an optimal charge. These climate-controlled shelters are completely ISO compliant for easier (and more cost-effective) manufacturing, shipping, installation, and use. Every Hybrid Power Shelter arrives assembled, tested, and ready to supply power. It’s future of the UPS.



  • 8’x10’ shelter with climate controls and user equipment rack
  • ZPM® provides intelligent lithium-ion backup power
  • DC genset provides power using diesel or propane
  • Plug and play renewables available
  • Different power configurations for different power needs

Grid-Tied Configuration

With a grid-tied 5kW solution, this configuration provides infinite backup with ongoing savings. It features 400Ah of energy storage charged by a combination of 3kW onboard solar panels and a 250A DC genset.

Off-Grid Configuration

For those with high power needs, this off-grid system features 2500Ah smart energy storage charged by a 425A DC genset and 17.4kW solar panels. An optional 2.4kW wind turbine can provide even more power!

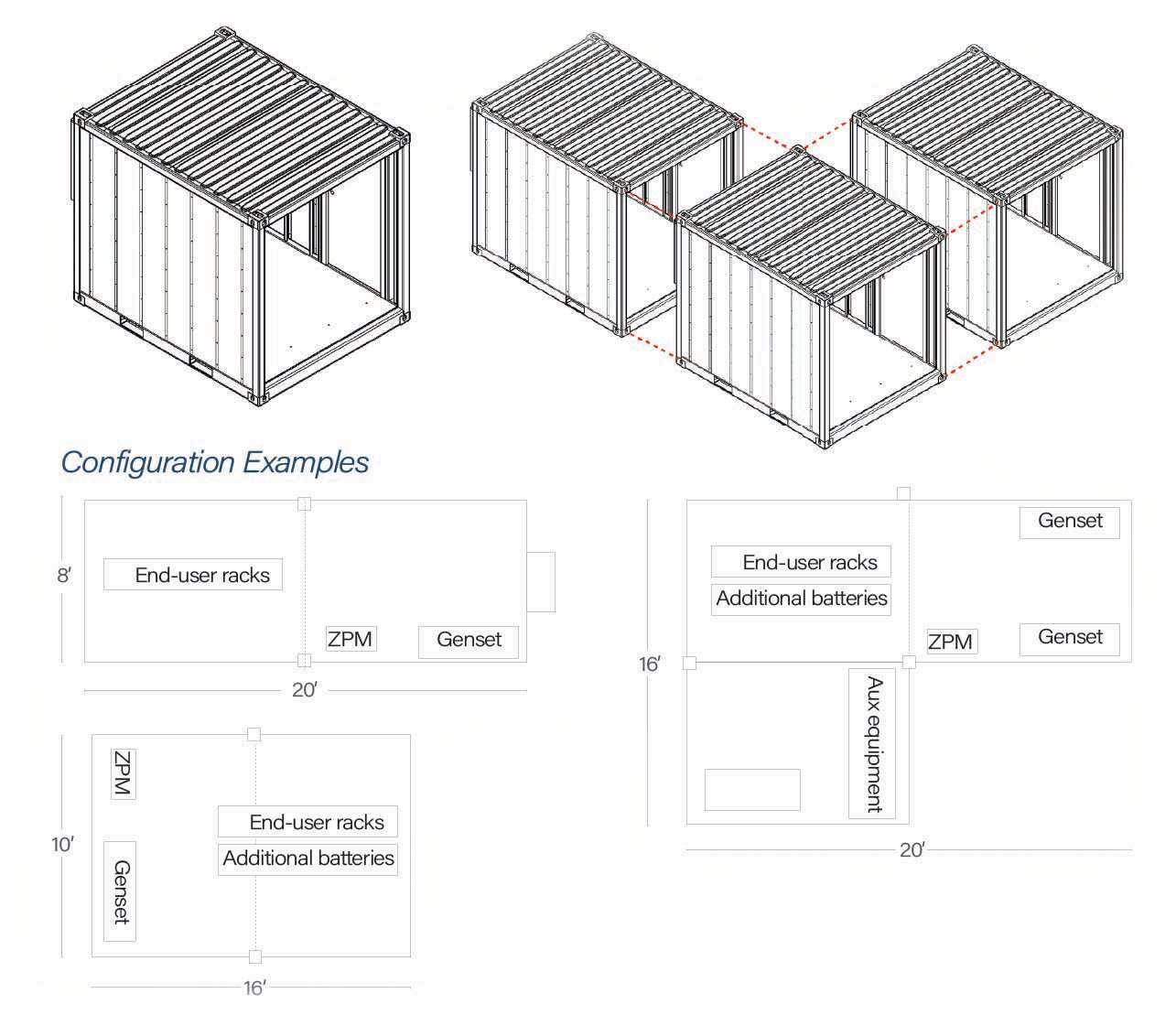

Content_HCI-Energy-Hybrid-Power-Shelter-Expansion-Module-Products-Page

Modular Expansion Shelter Option

Sometimes, you just need more space. The Modular Expansion Shelter can be attached to your Hybrid Power Shelter when you need more capacity.

Each Modular Expansion Shelter is 10’L x 8’W x 8'-6"H, which allows them to mate up easily with the 8’x10’ Hybrid Power Shelter. They can be connected in multiple configurations depending on how space is needed.

These Modular Expansion Shelters are perfect for adding extra battery storage, equipment racks, or even be used as freezers or additional office space! Each shelter is manufactured to ISO container specifications.

Solar Panel Option

While both configurations of the Hybrid Power Shelter™ come with solar panels, they can be expanded with additional panels to offset use of the DC genset. Whether you want to decrease emissions for environmental reasons or just don’t want to worry about fuel prices, more panels means more power!

You can add an extra 3.6kW with a single solar panel array. Each solar panel array is 13.5’x10.5’ and contains 8 individual panels. They feature a built-in charge controller and smart controls and arrive assembled, ready to use off-board.

Typically, off-grid configurations will need the most assistance from solar panels. Configuration 2 Hybrid Power Shelters come standard with 3kW onboard solar panels and 14.4kW outboard panels.

hcie energy side view solar option

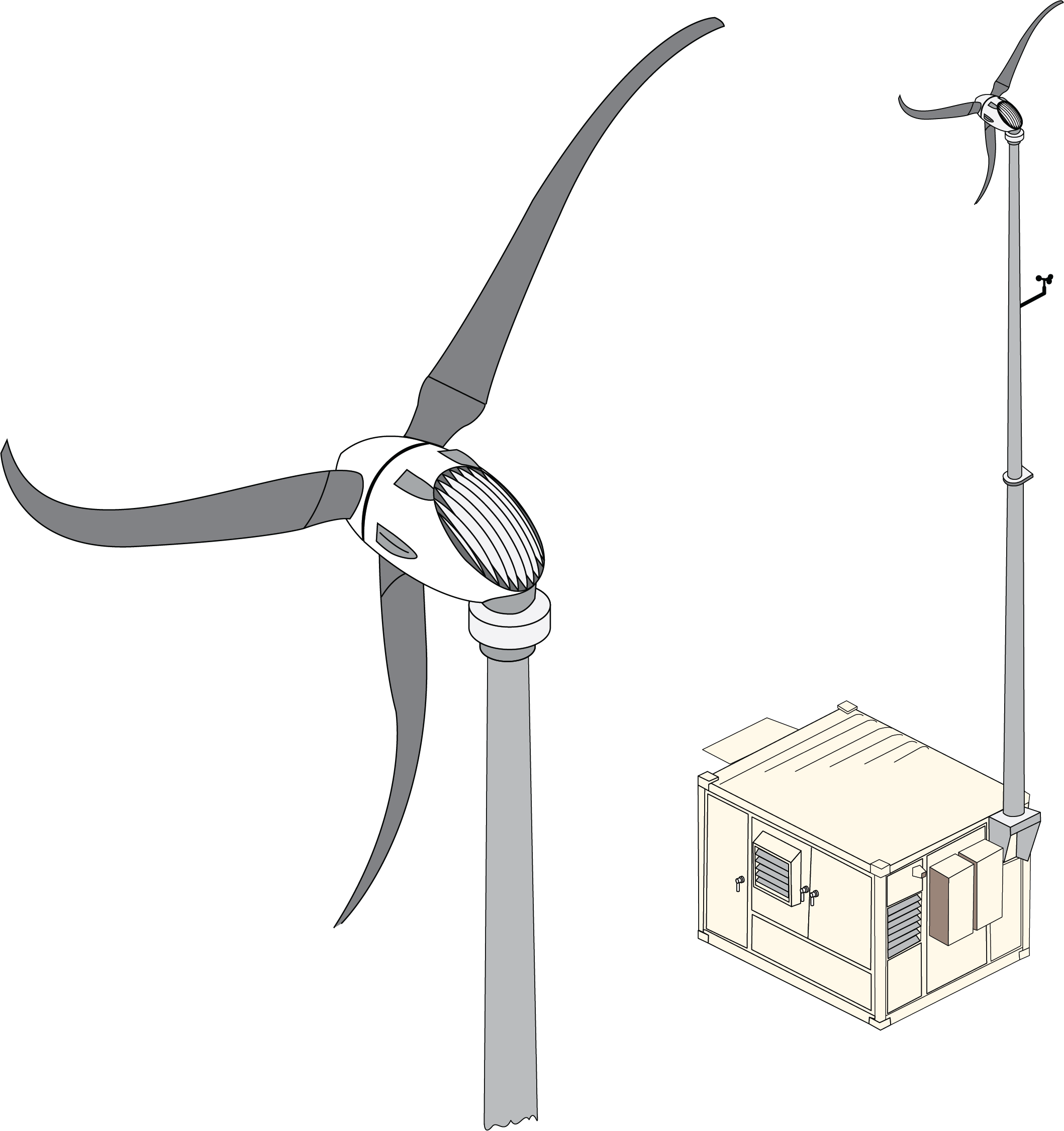

hci energy wind turbine option_1

Wind Turbine Option

If you get more wind than sun, HCI’s wind turbine option let’s you take advantage of every gust! They can be used in conjunction with solar panels or instead of them.

HCI’s wind turbines come with compartmentalized controls for power and energy storage. When firmly fixed to the roof of your Hybrid Power Shelter, the turbine blades stand at a height of 50’.

The wind turbine can also be optioned as a free standing tower, which reaches a height of 40’. This allows the tower to serve as mounting point for customer antennas, microwave antennas, cameras, and 5G installations. You can choose, to have your tower mounted on a pier or helical screw.

How The Hybrid Power Shelter™ Gives You Endless Electricity

This turnkey solution can integrate wind, solar, batteries and DC gensets within a climate-controlled end-user space.

Lead-acid batteries will leave you in the dark. It’s time to harness the power of lithium-ion energy storage! With HCI’s ZPM™ (Zero-Glitch Power Module) at its heart, the Hybrid Power Shelter™ provides hours, even days of backup power. To see how the Hybrid Power Shelter™ keeps the energy flowing, download our free guide now!

Download the Guide Now

When the Grid Fails You, the Hybrid Power Shelter™ is Ready!

HCI_ZPMProductPage_PowerGrid

Unreliable Power Grids

HCI_ZPMProductPage_ElectricalStorm

Electrical Storms

HCI_ZPMProductPage_NaturalDisaster

Natural Disasters

Benefits

Icon_EnergyStorage

Lithium-Ion Energy Storage

Lithium-Ion Energy Storage
Icon_Battery

Smart Power Regulation

Smart Power Regulation
Icon_MultiplePowerSupplies

Multiple Power Sources

Multiple Power Sources
Icon_Analytics

Powerful DC Genset

Powerful DC Genset
Icon_TransferSwitch

User Equipment Rack

User Equipment Rack
Icon_Sun

Optional Wind and Solar

Optional Wind and Solar
Icon_RemoteControl

Modular and Expandable

Modular and Expandable
Icon_AutonomousOperation

Ships Assembled and Tested

Ships Assembled and Tested
Icon_TwoEnergy

Fully ISO Compliant

Fully ISO Compliant

Experience This Machine In Action

Talk to an Expert
“For almost two years of operation, we have experienced numerous grid outages with absolutely no interruption of power thanks to the [Hybrid Power Shelter™]”
Paul Vescovo
Sheriff, Clay County

How The Hybrid Power Shelter™ Gives You Endless Electricity

If you’re still relying on lead-acid batteries to provide backup power, it’s time move into the future with lithium-ion!

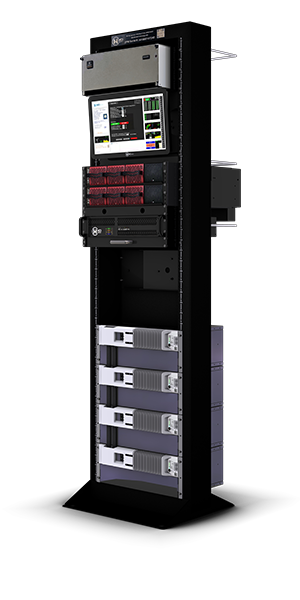

The heart of HCI’s Hybrid Power Shelter is the ZPM™ (Zero-Glitch Power Module), a smart energy storage control system that ensures you experience seamless power delivery whenever you need it.

Where the Hybrid Power Shelter stands head and shoulders over regular battery backups is that it can generate power, too! Featuring a powerful DC genset that runs on diesel or propane, solar panels, and an optional wind turbine, the Hybrid Power Shelter can keep you running through any outage. Want to know more? Book a call with our experts today.

Talk to an Expert

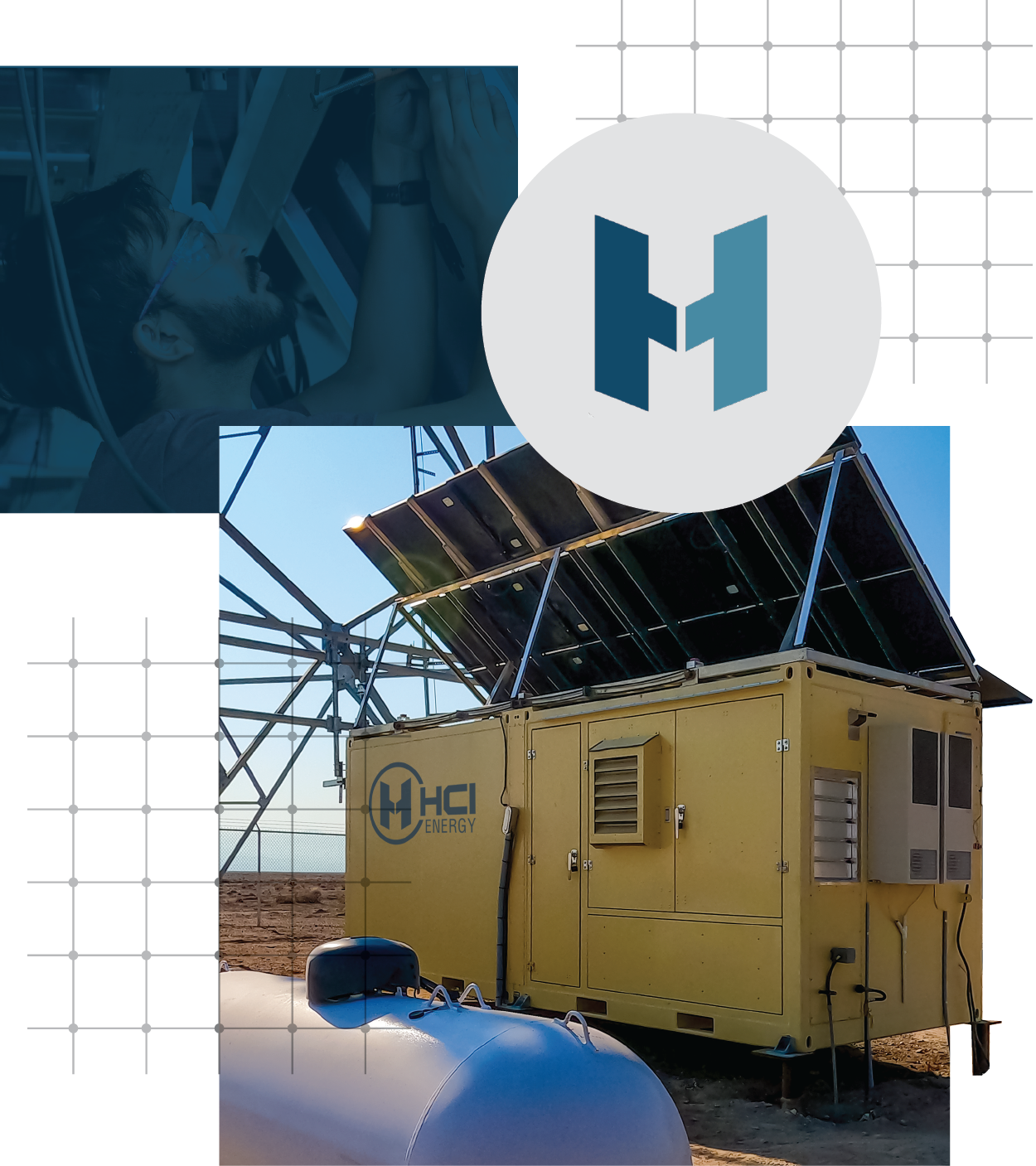

Content_HybridPowerShelter_CombinedGrid
